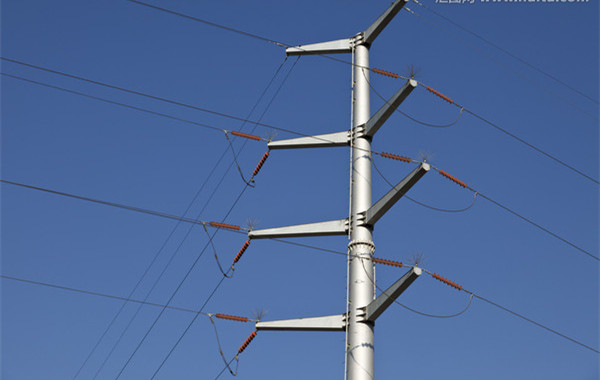

Hot Dip Galvanization Round 18M Electrical Steel Utility Pole for Distribution
Specification
| Products | - Hot Dip Galvanization Round 18M Electrical Steel Utility Pole for South America Distribution
|
| Type | |
| Voltage Grade | - Low Voltage
- Middle Voltage
- High Voltage
- 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 69KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
|
| Height | |
| Shape | - Conical / Round
- Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc).
|
| Material | - Hot Roll Steel Sheet Q345, GR50 which equivalent to S355JR.
- Min Yield Stree 345 Mpa
- Tensile Strength 470 Mpa ~ 630 Mpa
|
| Wall thickness | |
| Once Forming | - 14m Once forming without joint
- 40GP, 40HQ container Length is 12m , so the poles will be or more than 2 segments if longer than 12m.
|
| Welding | - Welding complies with AWS D1.1 standard.
- CO2 welding or submerged arc auto methods
- No fissure, scar, overlap, layer or other defects
- Internal and external welding
- Ensure 100% complete penetration welds.
|
| Joint | - Joint with insert mode, flange mode.
|
| Base plate | - Base plate is square/round/Polygon with slotted holes for anchor bolts installation.
|
1) Higher quality lower cost to win the competitive price
2) 3 production lines to ensure fast delivery
3) Skilled manufacturer, quality control and technical team
4) Warranty of quality : more than 20 years
Description
Our steel utility steel poles are non standard and normally design and manufacture according to customer's request. But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as following :
- Pole top design load
- Where is the position of the load , the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode , use slip joint or flange
- and others we can further more discuss when we need.
Advantages
- Short Construction Cycle
- Less Land Occupation
- Low Overall Cost
- Easy Installation and Maintenance
- Weather Resistance
- Anti-corrosion
- ODM & OEM are available
- Capable to Handle Volume Orders
- Provide Professional Design by Our Experienced R&D Engineers
Accessories:
1. Pole
2. Base Plate
3. Pole Top Cap
4. Butt Bearing Plate
5. Holes
6. CrossArm
7. Grounding Nut & Bolts
8. Anchor Bolts
9. Climbing Rungs
10. Identification Plate
11. Bituminous Painting if needed
12. Hot dip galvanized.
Production Process
- Raw material test
- Cutting
- Bending
- Welding (longitudinal )
- Dimension verify
- Flange welding
- Hole drilling
- Calibration
- Deburr
- Galvanization or powder coating or Bituminous painting
- Recalibration
- Packages
Our Services
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM & UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles
for more than 10 years, competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough.
But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines,
skilled technicians to ensure our products to be finished in high quality and stable feature.
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other
payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’
requirement.
Company Introduce
Through the efforts of the company staff, the support and cooperation from all over the world, our factory has been exporting the steel poles to Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container delivered in average every day.
